Wheeled scissor Lift

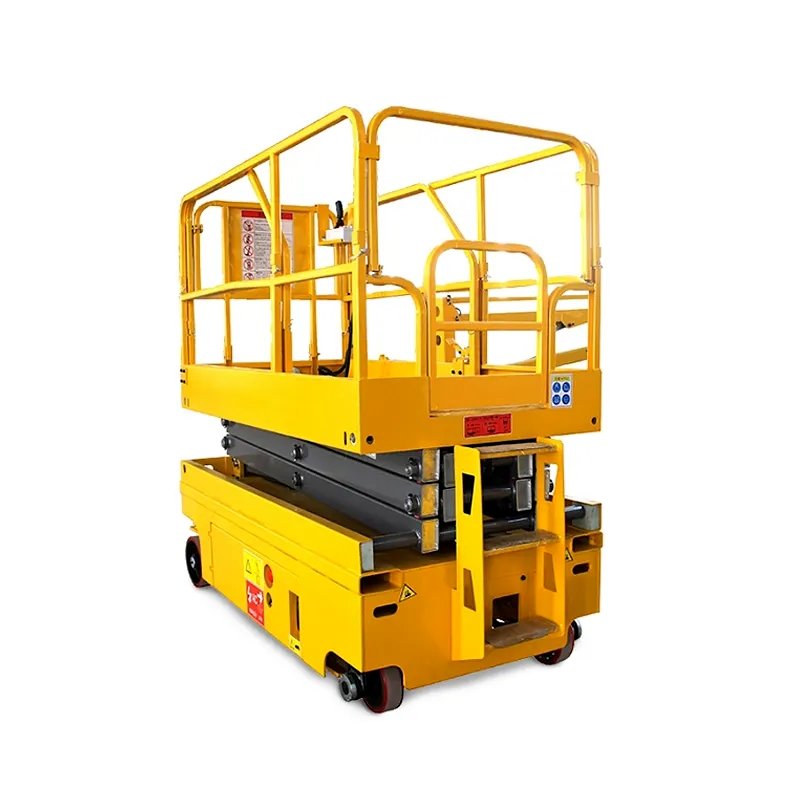

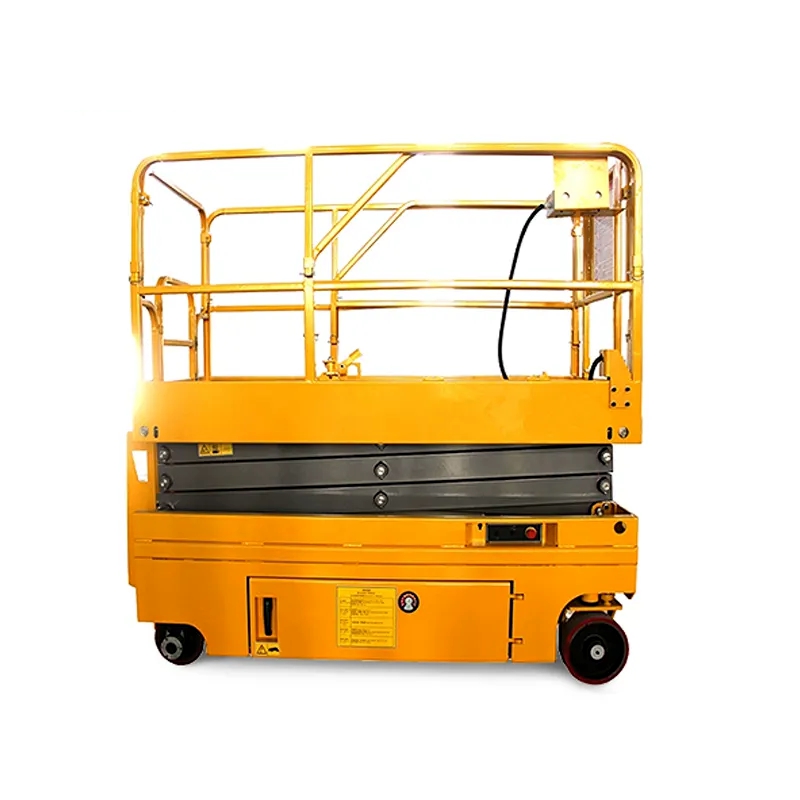

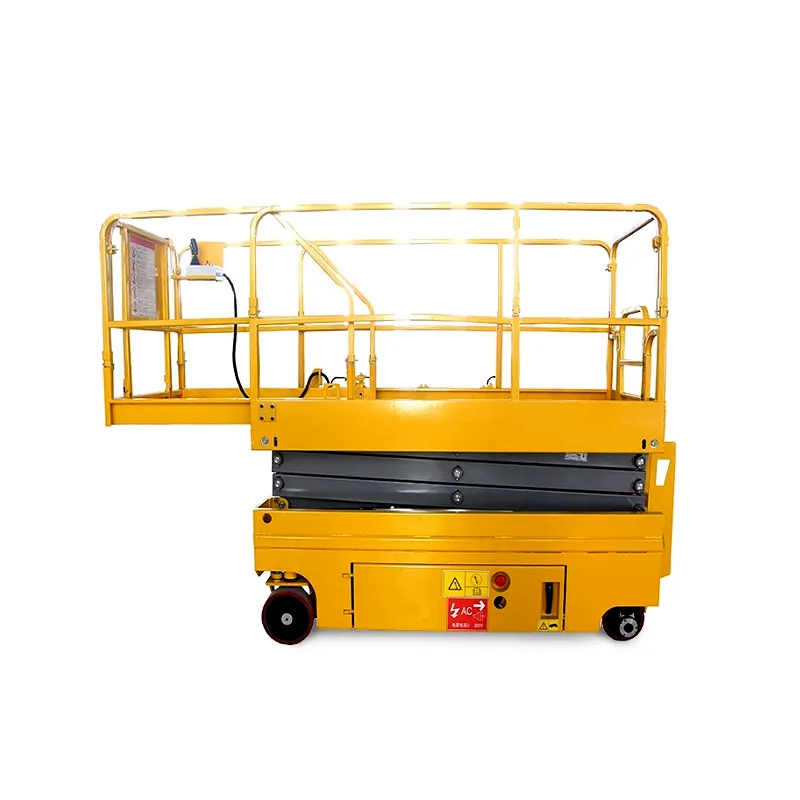

5.8m Self Propelled Wheeled Scissor Lift Precision Positioned Accurate Work Ready

The 5.8m Self-Propelled Wheeled Scissor Lift (model BJJZ06S-C) excels at precise operation positioning—its stable structure and accurate control boost work accuracy/efficiency, ideal for equipment installation, fine maintenance, and other precision-demanding tasks.It offers a 5.8m max platform height (7.8m working height) plus 0.9m extended platform; working platform size is 1.670.741.1m, supporting 230kg rated load (113kg for extended platform). Folded overall size: 1.850.81.85m, easy to store in limited spaces.Powered by 412V/83Ah batteries (optional 24V/135Ah lithium battery), lifting speed reaches 3-5m/min. Travel speed: 3.5km/h (folded), 0.8km/h (lifting). With 25% max gradeability, 1.5/3 allowable angle, and ⌀305100mm wheels, it adapts to diverse terrains. Weighing 1620kg, it’s maneuverable for indoor/outdoor use.Choose this precision-positioned lift for reliable, accurate high-altitude operations!
Send Inquiry
Description
Argument
Products Description

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Wheeled scissor Lift

Tags:

Technical parameter
